REDARC ALPHA DUAL BATTERY CHARGER KIT | ACCESSORY HARNESS | BATTERY TRAY

A complete pre wired dual battery charger kit for the Toyota LandCruiser LC300 Series.

Using the NEW Australian made Redarc ALPHA BCDC charger and solar controller with a Genuine Anderson plug to accept solar directly. It’s the only DC-DC charger that can both charge and recover your start battery at a push of a button.

Featuring 25A of advanced charging technology, this DC to DC charger keeps your start and secondary batteries charged using power from your vehicle’s alternator or solar. The BCDC Alpha's built in Green Power Priority™ will prioritise solar input, minimising the load on your alternator and saving fuel.

Stay informed and monitor the BCDC Alpha’s charge status in real-time through Bluetooth and the RedVision smartphone app.

FEATURES

• 25A Charging from DC and solar power

• Compatible with all common battery types including lithium (LiFePO4)

• IP67/69K dust and moisture protection

• Easy installation with pushbutton interface

• Charge back to your start battery with excess solar

• Recover a flat start battery with the push of a button

• Remote monitoring and control from the RedVision app with Bluetooth

• Protect your vehicle’s alternator with adjustable input current limit

• Future proof charging with over-the-air updates

The kit comes with the Redarc charger pre wired with soldered and heat shrunk connections, no joins required. Full colour digital instructions with pictures and video tutorials are supplied to assist with the install, as well as hard copies of the Redarc bcdc instructions and the Redarc bracket instructions.

DOWNLOAD: Redarc Bracket Instructions (BCDCMB-111)

DOWNLOAD: 300 Series Installation Instructions

Optional Extras:

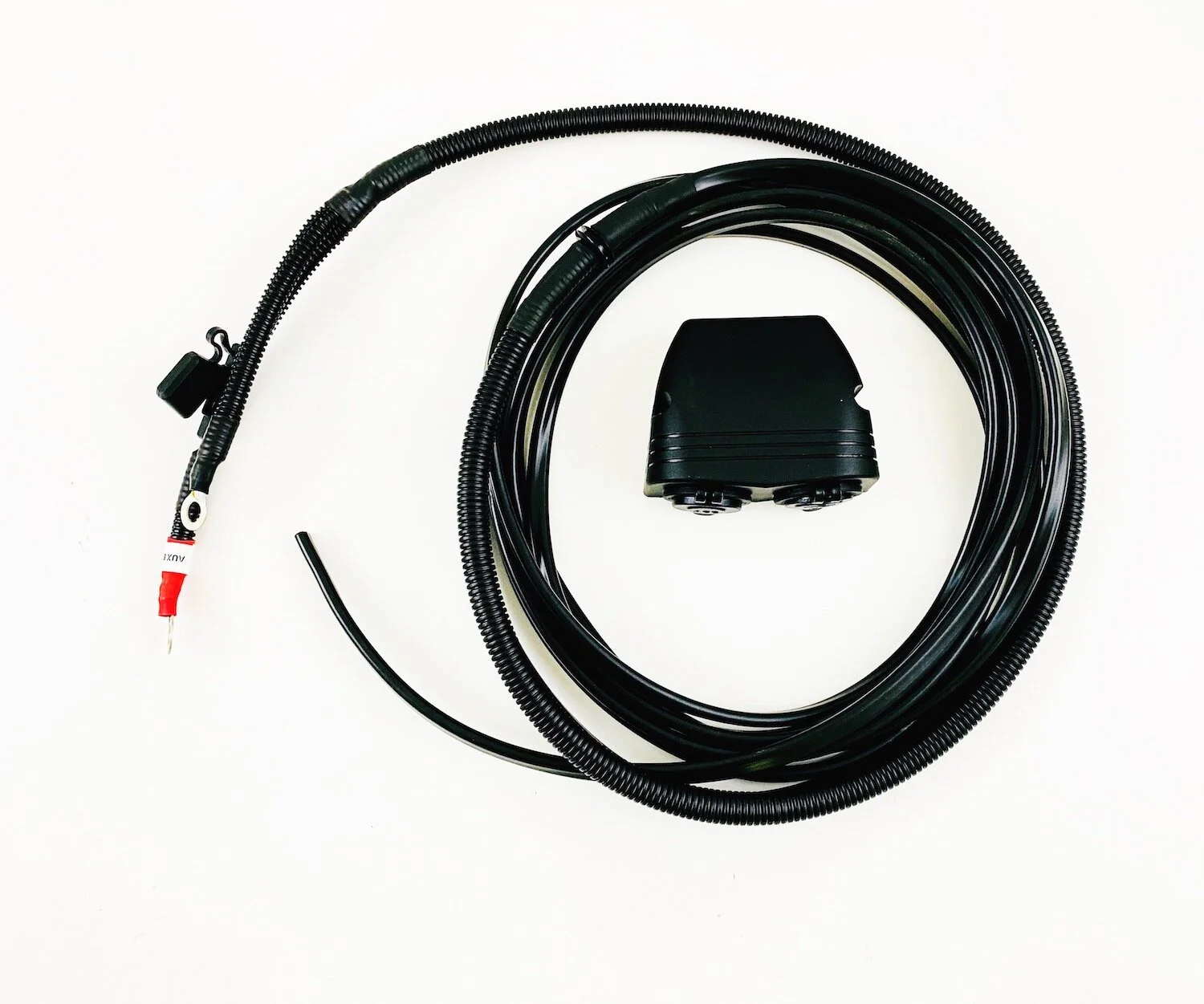

Accessory Harness: 7m cable to run to the rear of the vehicle and mount a socket housing. Your choice of any sockets (Cig, USB, Engel, Volt meter or Single Anderson with flip up cover) they can be customised to suit your needs. Please select your preference at checkout.

Please visit Accessory Harness product page for more details

ORD Accessory Panel: designed to be installed into the existing cupholder in the rear 3rd row seat/cargo area. Left and right side cup holder options available.

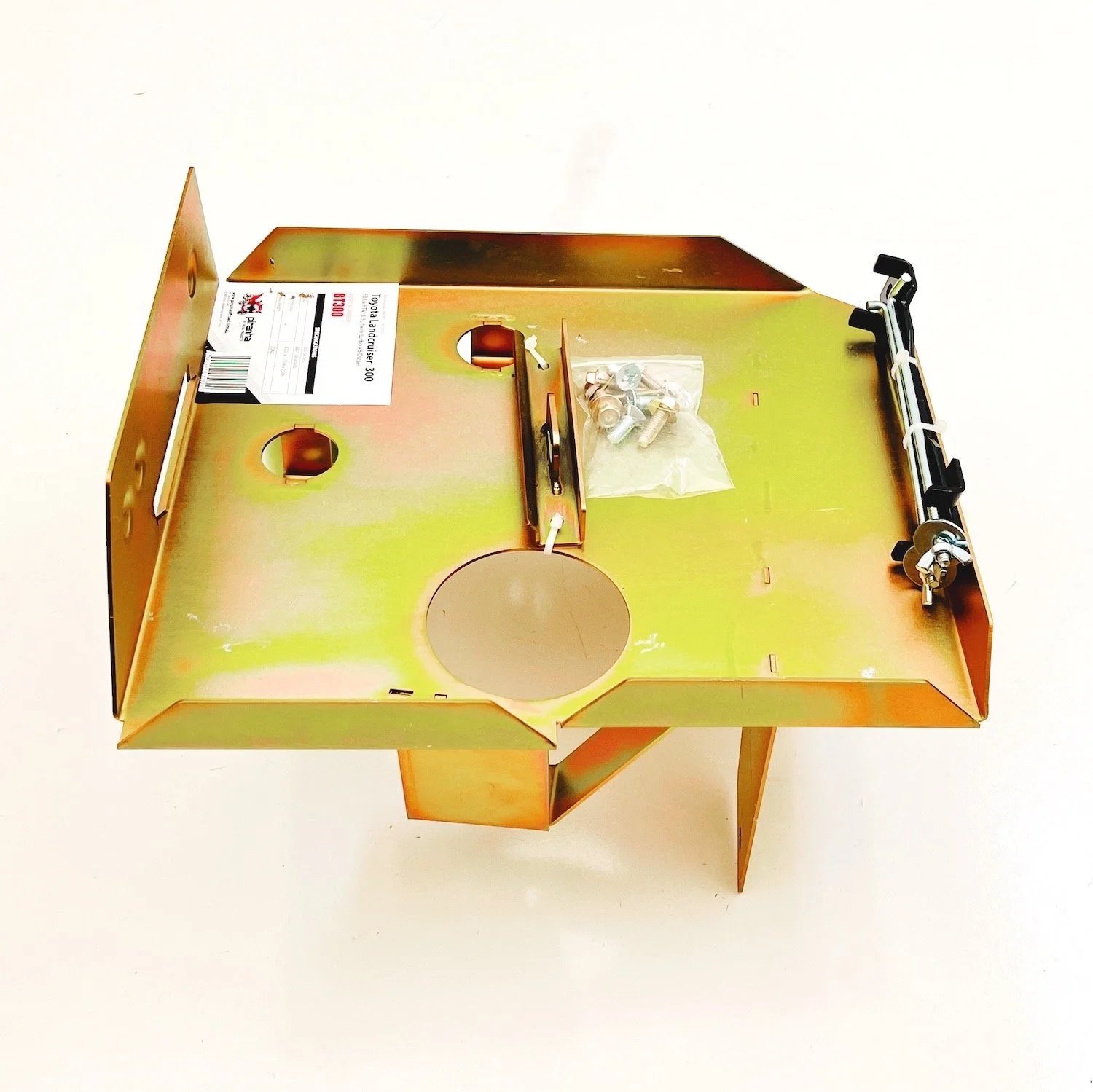

Battery Tray: Piranha off-road vehicle specific Battery Tray To Suit Toyota LandCruiser 300 Series 3.3Lt V6 Twin-Turbo Diesel (please see fitting guide for details of installation)

DOWNLOAD: Piranha BT300 Fitting Guide

Kit Includes:

• Redarc Alpha 25A BCDC pre wired to length to reach auxiliary and start batteries

• Anderson plug for unregulated 12v solar input

• Redarc bcdc steel laser cut mounting bracket - BCDCMB-111

• 2x Midi fuse holders and 40a fuses

• All nuts bolts and screws, cable ties required for install

• REDARC bcdc instruction booklets and sticker

• Digital instructions with video tutorials

Optional Extras:

• 7m accessory harness - prewired cable

• Flush or Surface mount socket housing

• ORD Accessory Panel - laser cut, black powder coated

• Fuses, cable ties and screws to assist with installation

• Piranha 4x4 battery tray

Also available in our Accessories - Solar Input Mounting Bracket as seen in the Installation Instruction Video.

Click here to add the Solar Input Anderson bracket and cover to your kit - Universal Solar Plug Mounting Bracket

Having trouble understanding the options? Click here - Watch Video Tutorial
